Name: Deye 12kVA Single-phase Inverter- SUN-12K-SG02LP1-EU-AM3
SKU: 00804
Availability: InStock

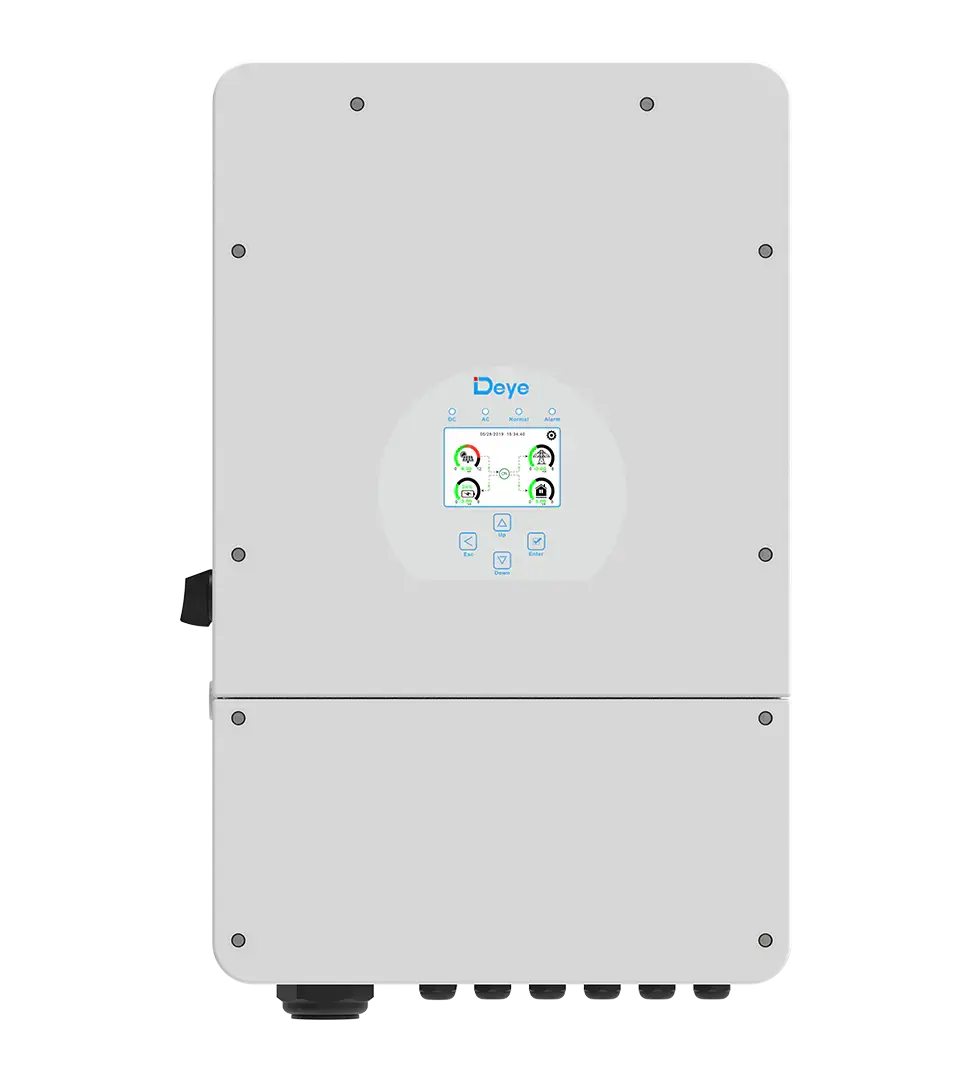

Deye 12kVA Single-phase Inverter- SUN-12K-SG02LP1-EU-AM3

₦2,687,000

The Deye 12kVA SUN-12K-SG02LP1-EU-AM3 is a 12kW single-phase hybrid inverter made by Deye. It combines solar (PV), battery, and grid power to supply electricity, offering seamless backup when the grid goes down. It supports lithium and lead-acid batteries (48 V systems), features multiple MPPTs to optimize solar input, allows parallel operation of up to 16 units, and includes smart monitoring via touch LCD plus communication interfaces. With an IP65 rating, it’s suitable for outdoor use and built to reliably manage generation, storage, and consumption in residential or light commercial solar systems.

Description

Product Features

12 kW rated AC output power
Hybrid operation: grid + solar + battery with backup support
Supports low-voltage battery systems (≈ 40–60 V)
Max charging/discharging current: 250 A
3 MPPT trackers to optimize solar input
MPPT voltage range: 150–425 V
Max DC input power: ~ 15,600 W
Max AC apparent power: ~ 13,200 VA
Efficiency: up to ~ 97.6%
IP65 protection rating for outdoor durability
Color touch LCD for local monitoring and control
Communication interfaces: RS485 / RS232 / CAN, options for WiFi / 4G etc.
Parallel operation: up to 16 units for scaling
6 programmable time periods for battery charging/discharging
Comprehensive protection features (overvoltage, overcurrent, short circuit, reverse polarity, thermal protection, etc.)
Dimensions (excl. connectors/brackets): 420 × 670 × 233 mm
Weight: ~ 35.6 kgProduct code: SUN-12K-SG02LP1-EU-AM3
